Project Description

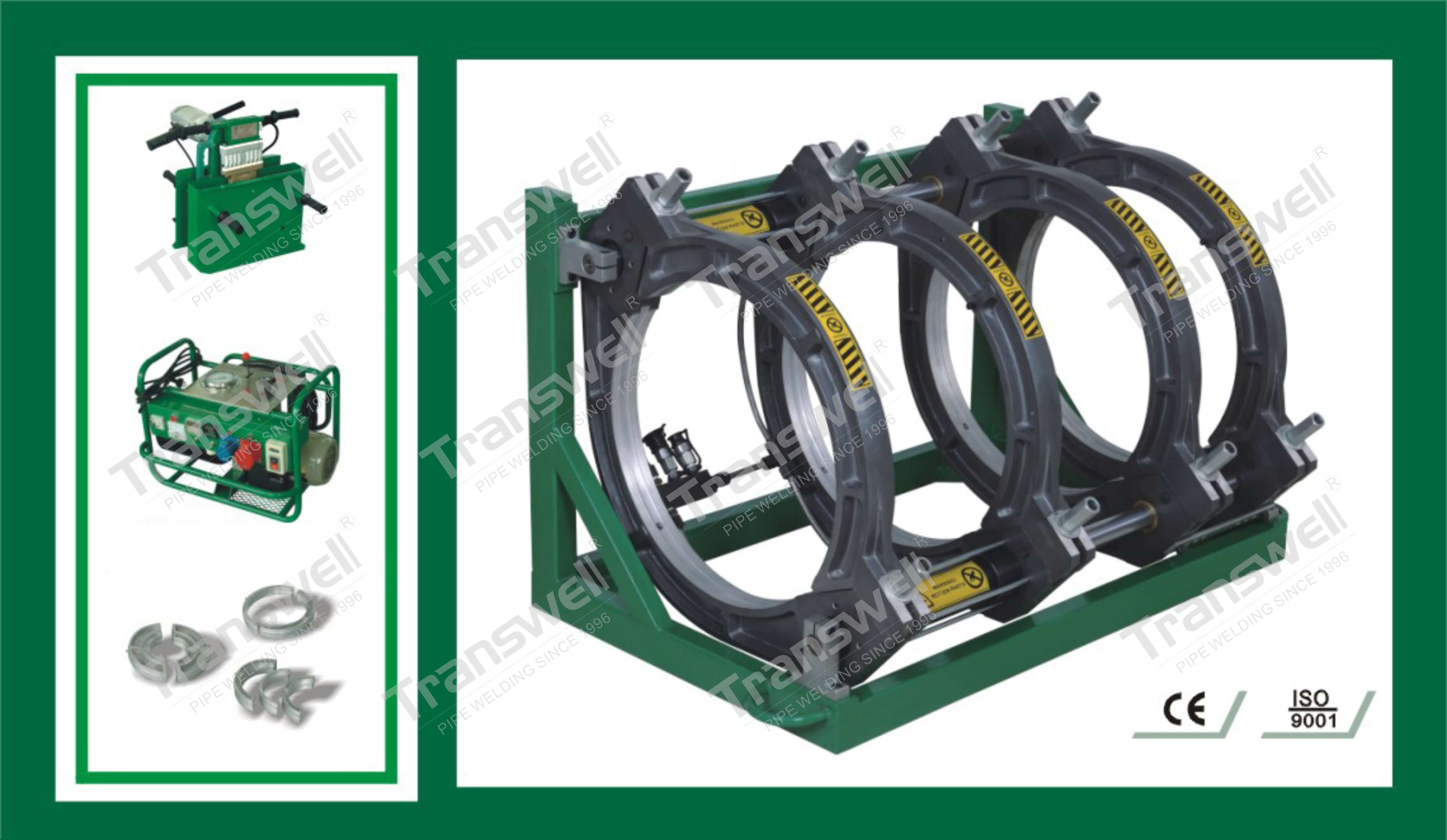

CHDHJ-400 Hydraulic Butt Fusion Machine

☆ Aluminum alloy frame, stable metal base, with twin-cylinder and precise pressure control, suitable for one man operation and complex working situation.

☆ Portable milling instrument, miniature safety switch(avoid the machine suddenly start) and motor protection fuse.

☆ The PTFE coating heating plate, have intelligent temperature control box, ensure high quality welding.

☆ The holder of milling and heating plate.

Fusing pipe scope 160MM~400MM
Rated voltage A.C 220/230V, 50/60Hz
Power 5600W
Milling power 1100W
Heating power 3000W
Pump power 1500W
Working temperature 0~300℃(PE,PP,PB,PVDF)
Environment temperature -5℃~45℃
Weight of machine 336KG
Cartons per machine 3PC
Carton size 1112*670*670/760*640*780/700*530*510mm
Weight/carton 178/91.2/67kg

☆ 1 PCS machine

☆ 1 PCS heating plate

☆ 1 PCS milling tool

☆ 1 PCS hydraulic power unit

☆ 1 PCS holder stand

☆ 1 Set of reducers D160*,D180*,D200*,D225*,D250*,D280*,D315,D355
